Diffraction project datasets 5upg
- Resolution: 1.7 Å
- Space group: P 1
PDB website for 5UPG
PDB validation report for 5UPG
doi:10.18430/M35UPG
Project details

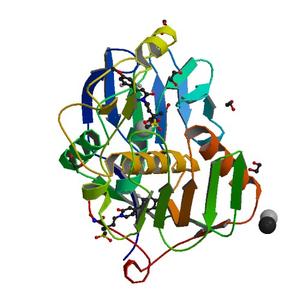

| Title | Crystal structure of LpxC from Pseudomonas aeruginosa in complex with PF-5081090 |
| Authors | Phan, J.N., Delker, S.L., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 35.84 x 47.40 x 48.15 |
| Unit cell angles [°] | 111.3, 109.1, 98.1 |
Dataset 285924g10_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

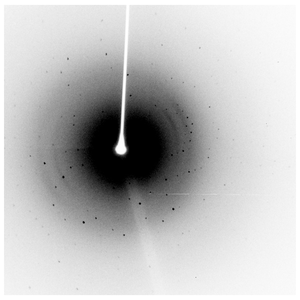

Dataset 285924g10_y####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 15.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset 285924g10_z####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
