Diffraction project datasets 5w25
- Resolution: 2.65 Å
- Space group: P 1 21 1
PDB website for 5W25
PDB validation report for 5W25
doi:10.18430/M35W25
Project details
| Title | Crystal structure of Aspartyl-tRNA synthetase from Mycobacterium tuberculosis complexed with L-Aspartic Acid |
| Authors | Dranow, D.M., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.23 / 0.25 |
| Unit cell edges [Å] | 64.72 x 158.24 x 75.74 |
| Unit cell angles [°] | 90.0, 93.8, 90.0 |

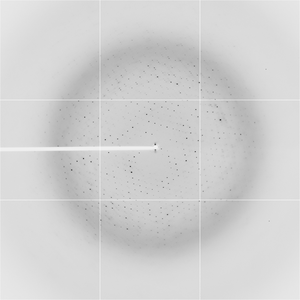

Dataset gdy9-5_1_#####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 335.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 1.00003 |
| Experiment Date | 2017-05-24 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
