Diffraction project datasets 6gnx
- Resolution: 2.9 Å
- Space group: P 32 2 1
PDB website for 6GNX
PDB validation report for 6GNX
doi:10.18430/m36gnx
Project details

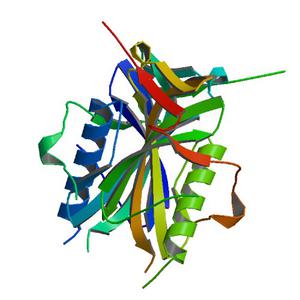

| Title | Crystal structure of the MAJIN-TERB2 heterotetrameric complex - selenomethionine derivative |
| Authors | Gurusaran, M., Dunce, J.M., Sen, L.T., Davies, O.R. |
| R / Rfree | 0.25 / 0.30 |
| Unit cell edges [Å] | 59.88 x 59.88 x 159.93 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

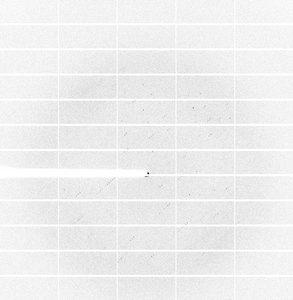

Dataset MeioB-12-HA00AX8792_2_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 580.5 |
| Oscillation width [°] | 0.10 |
| Wavelength [Å] | 0.91587 |
| Experiment Date | 2018-04-15 |
| Equipment | I04-1 at DIAMOND (Diamond Light Source) |

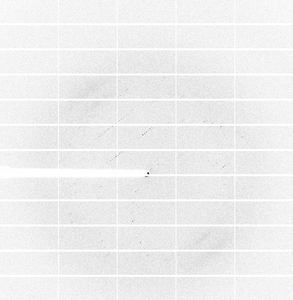

Dataset MeioB-12-HA00AX8792_3_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 580.5 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 15.0 |
| Wavelength [Å] | 0.91587 |
| Experiment Date | 2018-04-15 |
| Equipment | I04-1 at DIAMOND (Diamond Light Source) |

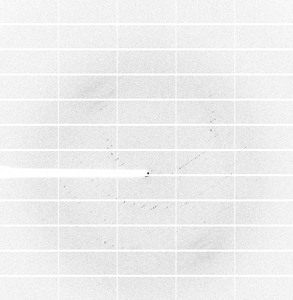

Dataset MeioB-12-HA00AX8792_4_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 580.5 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 0.91587 |
| Experiment Date | 2018-04-15 |
| Equipment | I04-1 at DIAMOND (Diamond Light Source) |
