Diffraction project datasets 6nzj
- Resolution: 2.4 Å
- Space group: P 65 2 2
PDB website for 6NZJ
doi:10.18430/m36nzj
Project details
| Title | Structural Analysis of a Nitrogenase Iron Protein from Methanosarcina acetivorans: Implications for CO2 Capture by a Surface-Exposed [Fe4S4] Cluster |
| Authors | Rettberg, L.A., Kang, W., Stiebritz, M.T., Hiller, C.J., Lee, C.C., Liedtke, J., Ribbe, M.W., Hu, Y. |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 96.17 x 96.17 x 320.24 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

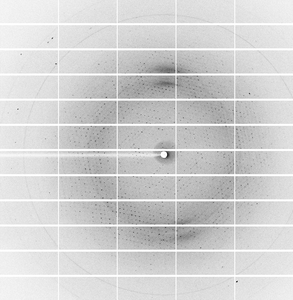

Dataset snap_MaNifH4_29_#####.cbf details
| Number of frames | 170 (1 - 170) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.25 |
| Wavelength [Å] | 0.97741 |
| Experiment Date | 2017-09-21 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
Dataset snap_MaNifH4_30_#####.cbf details
| Number of frames | 501 (170 - 670) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.25 |
| Wavelength [Å] | 0.97741 |
| Experiment Date | 2017-09-21 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
