Diffraction project datasets 7atg
- Resolution: 0.6 Å
- Space group: P 21 21 21
PDB website for 7ATG
PDB validation report for 7ATG
doi:10.18430/m37atg
Project details

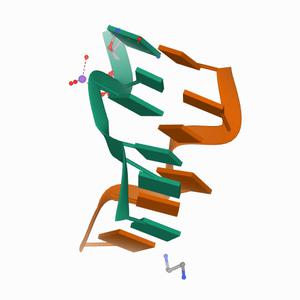

| Title | Crystal structure of Z-DNA in complex with putrescinium and potassium cations at ultrahigh-resolution |
| Authors | Drozdzal, P., Gilski, M., Jaskolski, M. |
| R / Rfree | 0.09 / 0.10 |
| Unit cell edges [Å] | 17.97 x 31.02 x 43.86 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

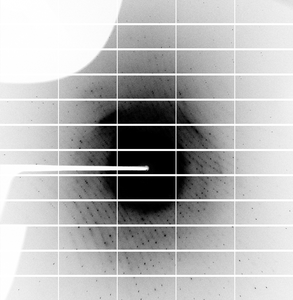

Dataset put-2-2.0s_5_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 135.1 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | -0.4987 |
| Phi [°] | 0.0225 |
| Wavelength [Å] | 0.72932 |
| Experiment Date | 2015-06-22 |
| Equipment | P13 (MX1) |

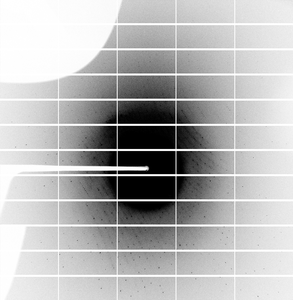

Dataset put-2-test-0.717A-10s_1_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 135.1 |
| Oscillation width [°] | 0.50 |
| Kappa / Chi [°] | -0.4987 |
| Phi [°] | 0.0127 |
| Wavelength [Å] | 0.68880 |
| Experiment Date | 2015-06-22 |
| Equipment | P13 (MX1) |
