Diffraction project datasets 7d9l
- Resolution: 1.61 Å
- Space group: P 21 21 2
PDB website for 7D9L
doi:10.18430/M37D9L
Project details

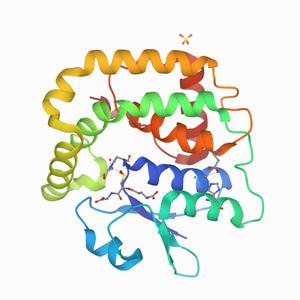

| Title | Crystal structure of E. coli Grx2: Enzyme inhibited state in complex with Zinc and glutathione sulfinic acid |
| Authors | Sreekumar, S.N., Arockiasamy, A. |
| R / Rfree | 0.13 / 0.18 |
| Unit cell edges [Å] | 46.10 x 106.76 x 42.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

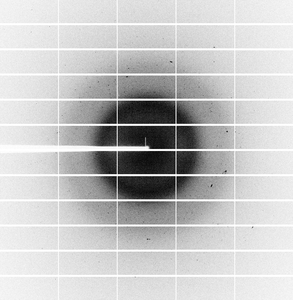

Dataset sreee2dhagshxtal1_w1_1_####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 228.6 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 147.0 |
| Kappa / Chi [°] | 0.0014 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.98400 |
| Equipment | ID29 at ESRF (European Synchrotron Radiation Facility) |
