Diffraction project datasets 7lbk
- Resolution: 2.7 Å
- Space group: C 1 2 1
PDB website for 7LBK
PDB validation report for 7LBK
doi:10.18430/M37LBK
Project details

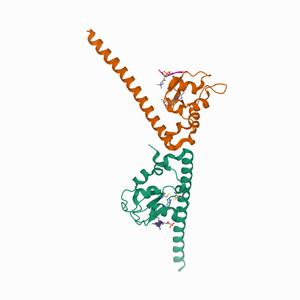

| Title | Crystal structure of human Survivin bound to histone H3 T3phK4me3 peptide |
| Authors | Niedzialkowska, E., Minor, W., Stukenberg, P.T. |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 114.29 x 71.37 x 82.55 |
| Unit cell angles [°] | 90.0, 129.3, 90.0 |

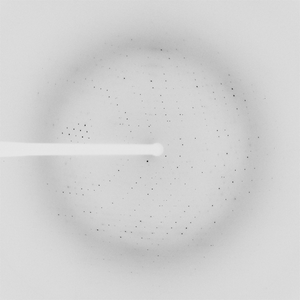

Dataset K65_ok1_A.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.27822 |
| Experiment Date | 2013-06-21 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

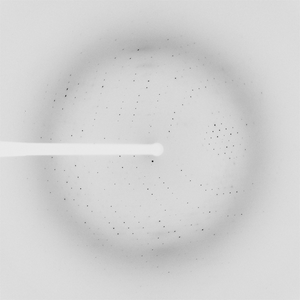

Dataset K65_ok1_B.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.27822 |
| Experiment Date | 2013-06-21 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
