Diffraction project datasets 7ofl
- Resolution: 1.83 Å
- Space group: P 21 21 2
PDB website for 7OFL
PDB validation report for 7OFL
doi:10.18430/M37OFL
Project details

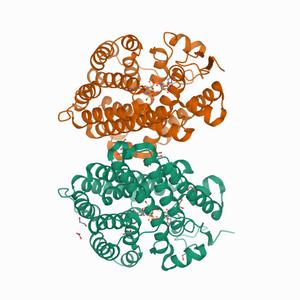

| Title | Crystal structure of the sesquiterpene synthase Copu9 from coniophora puteana in complex with alendronate |
| Authors | Dimos, N., Loll, B. |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 74.46 x 76.62 x 135.11 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

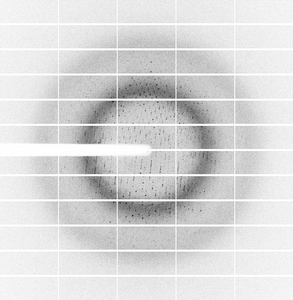

Dataset x6_1_####.cbf details
| Number of frames | 184 (1 - 184) |
| Distance [mm] | 321.6 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 75.0 |
| Kappa / Chi [°] | 0.0009 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |

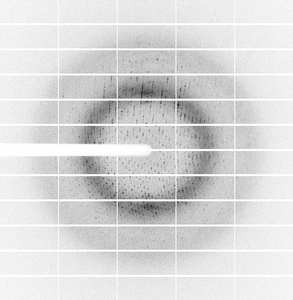

Dataset x6_1_####.cbf details
| Number of frames | 1815 (186 - 2000) |
| Distance [mm] | 321.6 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 93.5 |
| Kappa / Chi [°] | 0.0009 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
