Diffraction project datasets 7pq8
- Resolution: 1.329 Å
- Space group: P 21 21 21
PDB website for 7PQ8
PDB validation report for 7PQ8
doi:10.18430/M3.IRRMC.6077
Project details

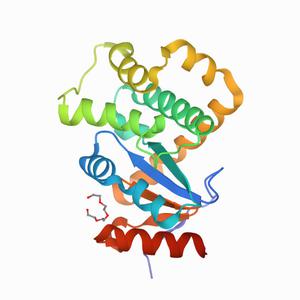

| Title | Crystal structure of Campylobacter jejuni DsbA1 |
| Authors | Orlikowska, M., Bocian-Ostrzycka, K.M., Banas, A.M., Jagusztyn-Krynicka, E.K. |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 34.49 x 57.67 x 93.78 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

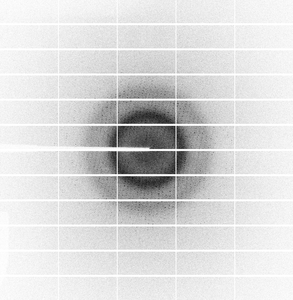

Dataset s9_1_####.cbf details
| Number of frames | 2000 (1 - 2000) |
| Distance [mm] | 180.8 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 355.0 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
