Diffraction project datasets 7s2e

  • Resolution: 1.6 Å
  • Space group: P 43 21 2
Download all images (313.4 MB)

PDB website for 7S2E
PDB validation report for 7S2E

doi:10.18430/M37S2E

Project details

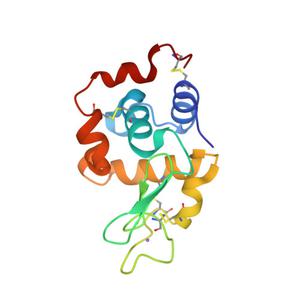

Title Crystal structure of hen egg white lysozyme
Authors Lima, L.M.T.R., Ramos, N.G., Ribeiro, F.S.
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 78.34 x 78.34 x 36.92
Unit cell angles [°] 90.0, 90.0, 90.0

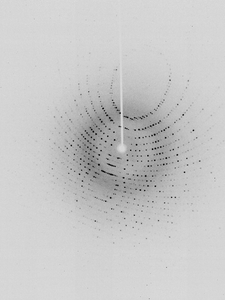

Dataset 125K_Inmetro_N8_01_####.sfrm details

Number of frames 177 (1 - 177)
Distance [mm] 36.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Wavelength [Å] 1.54184
Experiment Date 2020-12-07
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

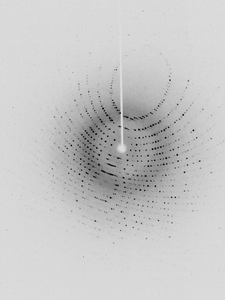

Dataset 125K_Inmetro_N8_02_####.sfrm details

Number of frames 111 (1 - 111)
Distance [mm] 36.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Wavelength [Å] 1.54184
Experiment Date 2020-12-07
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

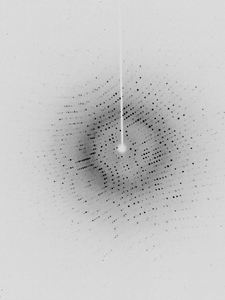

Dataset 125K_Inmetro_N8_03_####.sfrm details

Number of frames 220 (1 - 220)
Distance [mm] 36.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Phi [°] 180.0
Wavelength [Å] 1.54184
Experiment Date 2020-12-07
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
