Diffraction project datasets 7s2g

  • Resolution: 1.6 Å
  • Space group: P 43 21 2
Download all images (397.4 MB)

PDB website for 7S2G
PDB validation report for 7S2G

doi:10.18430/M37S2G

Project details

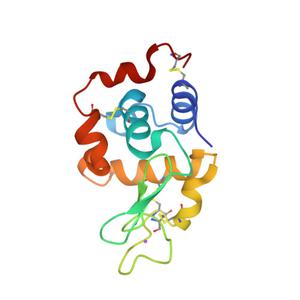

Title Crystal structure of hen egg white lysozyme
Authors Lima, L.M.T.R., Ramos, N.G., Ribeiro, F.S.
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 77.97 x 77.97 x 37.11
Unit cell angles [°] 90.0, 90.0, 90.0

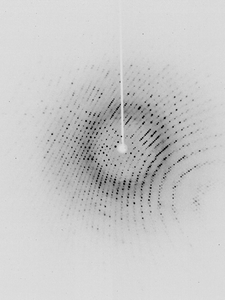

Dataset 125K_Inmetro_N11_01_####.sfrm details

Number of frames 200 (1 - 200)
Distance [mm] 38.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Phi [°] 270.0
Wavelength [Å] 1.54184
Experiment Date 2021-03-24
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

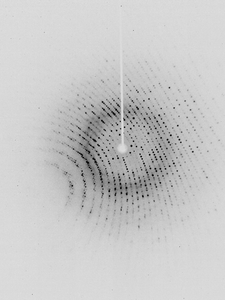

Dataset 125K_Inmetro_N11_02_####.sfrm details

Number of frames 284 (1 - 284)
Distance [mm] 38.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Wavelength [Å] 1.54184
Experiment Date 2021-03-24
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

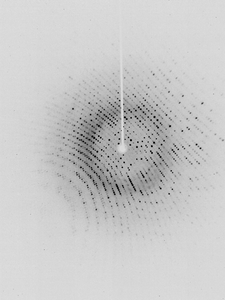

Dataset 125K_Inmetro_N11_03_####.sfrm details

Number of frames 177 (1 - 177)
Distance [mm] 38.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Phi [°] 180.0
Wavelength [Å] 1.54184
Experiment Date 2021-03-24
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
