Diffraction project datasets 8ft6
- Resolution: 2.62 Å
- Space group: P 65
PDB website for 8FT6
PDB validation report for 8FT6
doi:10.18430/M38FT6
Project details

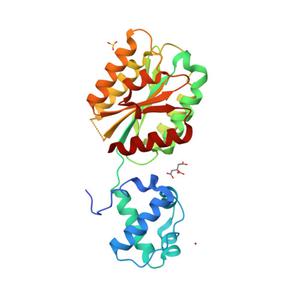

| Title | The von Willebrand factor A domain of human capillary morphogenesis gene II, flexibly fused to the 1TEL crystallization chaperone, Ala-Ala linker variant, SUMO tag-free preparation. |
| Authors | Gajjar, P.L., Litchfield, C.M., Callahan, M., Redd, N., Doukov, T., Moody, J.D. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 99.75 x 99.75 x 50.14 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

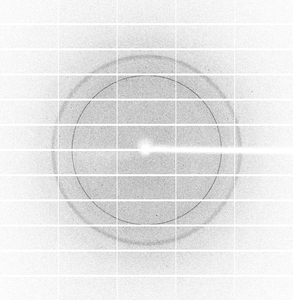

Dataset J7_1_#####.cbf details
| Number of frames | 4800 (1 - 4800) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.15 |
| Omega [°] | 292.0 |
| Phi [°] | 292.0 |
| Wavelength [Å] | 1.85321 |
| Experiment Date | 2022-03-21 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
