Diffraction project datasets 8u1e
- Resolution: 1.43 Å
- Space group: P 43 21 2
PDB website for 8U1E
PDB validation report for 8U1E
doi:10.18430/M38U1E
Project details

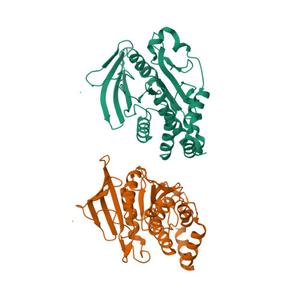

| Title | Apo protein tyrosine phosphatase 1B (PTP1B) at high resolution (1.43 A) in space group P43212 with two distinctly ordered chains |
| Authors | Sharma, S., Mehlman, S.T., Keedy, A.D. |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 88.41 x 88.41 x 163.00 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

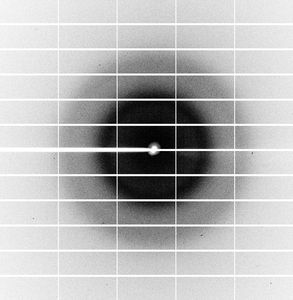

Dataset run_1_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 89.9999 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2021-10-08 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
