Diffraction project datasets 8vtd
- Resolution: 1.23 Å
- Space group: P 1 21 1
Uniprot website for Q495A1
PDB website for 8VTD
PDB validation report for 8VTD
doi:10.18430/M38VTD
Project details

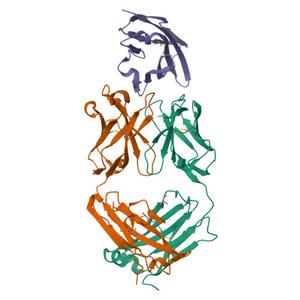

| Title | Co-structure of the Fab of the anti-TIGIT Vibostolimab antibody with its antigen |
| Authors | Fischmann, T. |
| R / Rfree | 0.19 / 0.20 |
| Unit cell edges [Å] | 41.78 x 106.00 x 71.76 |
| Unit cell angles [°] | 90.0, 104.4, 90.0 |

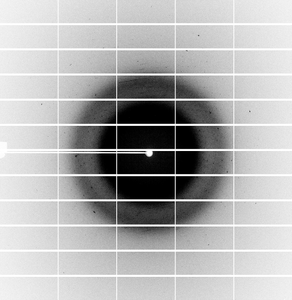

Dataset MSD0001_01_####.cbf details
| Number of frames | 536 (2 - 537) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.30 |
| Omega [°] | 161.4 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2018-11-15 |
| Equipment | 17-ID at APS (Advanced Photon Source) |
Dataset MSD0001_01_####.cbf details
| Number of frames | 62 (539 - 600) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.30 |
| Omega [°] | 161.4 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2018-11-15 |
| Equipment | 17-ID at APS (Advanced Photon Source) |
