Diffraction project datasets APC100346_4XEA
- Method: SAD
- Resolution: 1.95 Å
- Space group: P 43 21 2
PDB website for 4XEA
PDB validation report for 4XEA
doi:10.18430/M34XEA
Project details
| Title | Crystal structure of putative M16-like peptidase from Alicyclobacillus acidocaldarius |
| Authors | Michalska, K., Tesar, C., Bearden, J., Joachimiak, A., Midwest Center for Structural Genomics (MCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 127.20 x 127.20 x 65.99 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

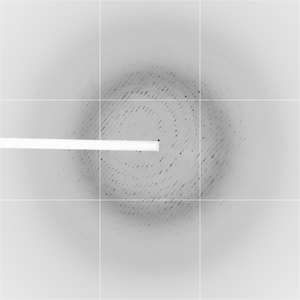

Dataset 100346_M1_B8_high.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -50.0 |
| Wavelength [Å] | 0.97915 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

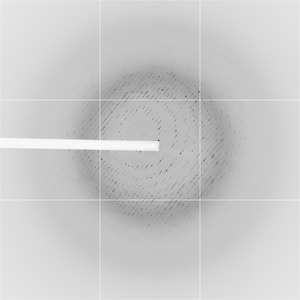

Dataset 100346_M1_B8_low.####.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -50.0 |
| Wavelength [Å] | 0.97915 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
