Diffraction project datasets APC101507_4EXK
- Method: Molecular Replacement
- Resolution: 1.28 Å
- Space group: P 32 2 1
PDB website for 4EXK
PDB validation report for 4EXK
doi:10.18430/M34EXK
Project details

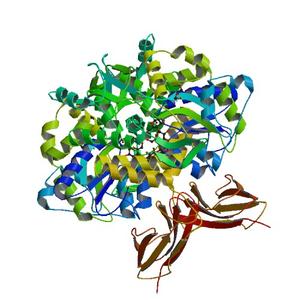

| Title | A chimera protein containing MBP fused to the C-terminal domain of the uncharacterized protein STM14_2015 from Salmonella enterica |
| Authors | Nocek, B., Hatzos-Skintges, C., Jedrzejczak, R., Babnigg, G., Brown, R.N., Cort, J.R., Heffron, F., Nakayasu, E.S., Adkins, J.N., Joachimiak, A. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 64.08 x 64.08 x 180.91 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

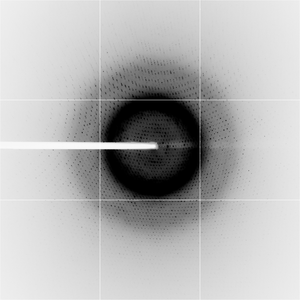

Dataset 1507_102_dropb3M2-29-gly-high.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 161.8 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -95.0 |
| Wavelength [Å] | 0.97921 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

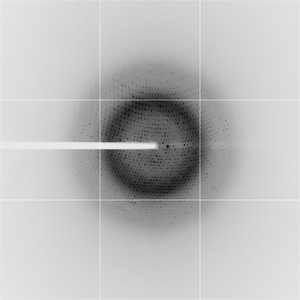

Dataset 1507_102_dropb3M2-29-gly-low.####.img details
| Number of frames | 30 (1 - 30) |
| Distance [mm] | 161.8 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -95.0 |
| Wavelength [Å] | 0.97921 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
