Diffraction project datasets APC102213_4EYG
- Method: SAD
- Resolution: 1.86 Å
- Space group: P 1 21 1
PDB website for 4EYG
doi:10.18430/M34EYG
Project details

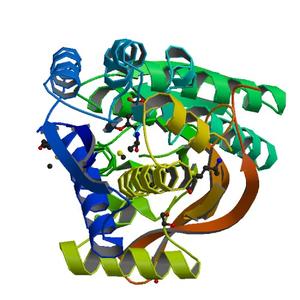

| Title | Crystal structure of solute binding protein of ABC transporter from Rhodopseudomonas palustris BisB5 in complex with vanillic acid |
| Authors | Michalska, K., Chang, C., Mack, J.C., Zerbs, S., Joachimiak, A., Collart, F.R. |
| R / Rfree | 0.14 / 0.19 |
| Unit cell edges [Å] | 46.87 x 130.54 x 70.39 |
| Unit cell angles [°] | 90.0, 109.2, 90.0 |

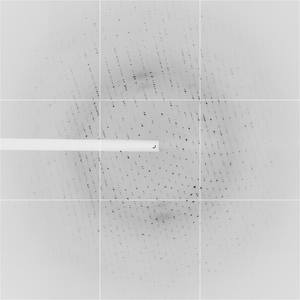

Dataset xBs1m.####.img details
| Number of frames | 93 (1 - 93) |
| Distance [mm] | 274.4 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97921 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

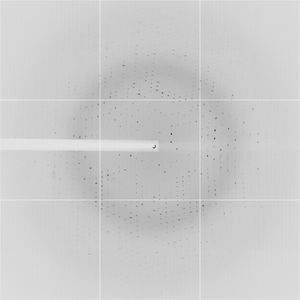

Dataset xBs2m.####.img details
| Number of frames | 84 (1 - 84) |
| Distance [mm] | 274.4 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -30.0 |
| Wavelength [Å] | 0.97921 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
