Diffraction project datasets APC103207_4IX5

  • Method: Difference Fourier
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (3.8 GB)

PDB website for 4IX5

doi:10.18430/M34IX5

Project details

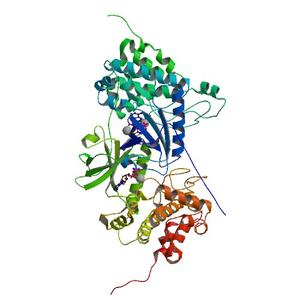

Title Crystal structure of a Stt7 homolog from Micromonas algae in complex with AMP-PNP
Authors Guo, J., Wei, X., Li, M., Pan, X., Chang, W., Liu, Z.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 53.86 x 132.61 x 55.18
Unit cell angles [°] 90.0, 116.6, 90.0

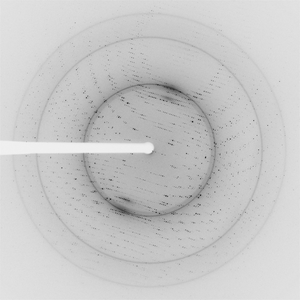

Dataset apc103207a.### details

Number of frames 600 (1 - 600)
Distance [mm] 180.0
Oscillation width [°] 0.60
Phi [°] 75.0
Wavelength [Å] 0.97872
Equipment BL17U at SSRF (Shanghai Synchrotron Radiation Facility)
