Diffraction project datasets APC106683_4JGP
- Method: SAD
- Resolution: 2.03 Å
- Space group: P 21 21 21
PDB website for 4JGP
PDB validation report for 4JGP
doi:10.18430/M34JGP
Project details

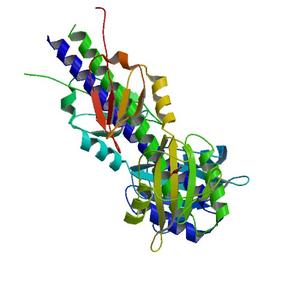

| Title | The crystal structure of sporulation kinase D sensor domain from Bacillus subtilis subsp in complex with pyruvate at 2.0A resolution |
| Authors | Wu, R., Gu, M., Wilton, R., Babnigg, G., Kim, Y., Pokkuluri, P.R., Szurmant, H., Joachimiak, A., Schiffer, M. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 76.37 x 82.15 x 90.68 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

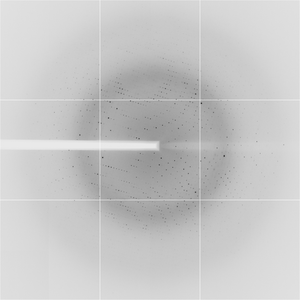

Dataset 2077_W_pyr2pk.####.img details
| Number of frames | 195 (1 - 195) |
| Distance [mm] | 256.4 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -77.0 |
| Wavelength [Å] | 0.97931 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
