Diffraction project datasets APC111818_4WUI
- Method: MAD
- Resolution: 1.09 Å
- Space group: P 21 21 21
PDB website for 4WUI
PDB validation report for 4WUI
doi:10.18430/M34WUI
Project details

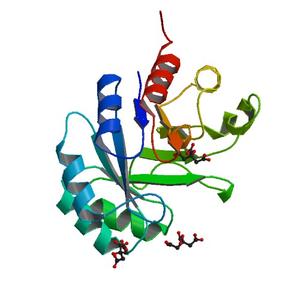

| Title | Crystal structure of TrpF from Jonesia denitrificans |
| Authors | Michalska, K., Verduzco-Castro, E.A., Endres, M., Barona-Gomez, F., Joachimiak, A., Midwest Center for Structural Genomics (MCSG) |
| Bioentity | None |
| R / Rfree | 0.13 / 0.14 |
| Unit cell edges [Å] | 49.42 x 64.29 x 66.41 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

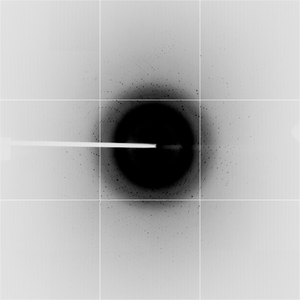

Dataset 271TrpF_M4_C1_data.####.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 115.1 |
| Oscillation width [°] | 0.30 |
| Phi [°] | -40.0 |
| Wavelength [Å] | 0.97927 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

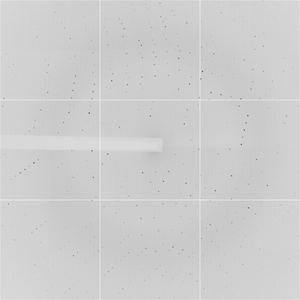

Dataset 271TrpF_M4_C1_x3_low.####.img details
| Number of frames | 125 (1 - 125) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -125.0 |
| Wavelength [Å] | 0.97927 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

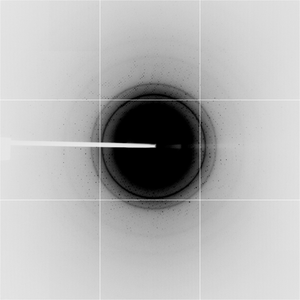

Dataset 271TrpF_M4_C1_x4_high.####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 115.1 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -75.0 |
| Wavelength [Å] | 0.97927 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
