Diffraction project datasets BopeA_00002_a_B2-apo_9o8n
- Resolution: 1.59 Å
- Space group: P 63
Uniprot website for P0A4U8
PDB website for 9O8N
PDB validation report for 9O8N
doi:10.18430/M39O8N
Project details
| Title | Crystal structure of 2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase (DapD) from Bordetella pertussis |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 97.70 x 97.70 x 78.29 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

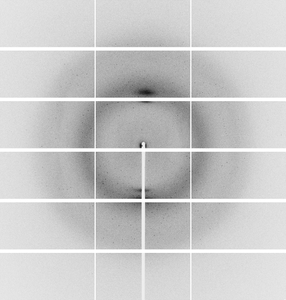

Dataset PSL-12_06_2819_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 230.403 |
| Wavelength [Å] | 0.97860 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
