Diffraction project datasets BumuA_00117_a_B1-ZN_9dr5
- Resolution: 1.71 Å
- Space group: P 1
Uniprot website for A0A0H3KXJ8
PDB website for 9DR5
PDB validation report for 9DR5
doi:10.18430/m39dr5
Project details

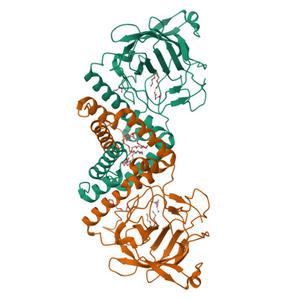

| Title | Crystal structure of Catechol 1,2-dioxygenase from Burkholderia multivorans (Zinc bound, P1 form) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 84.97 x 86.27 x 110.16 |
| Unit cell angles [°] | 106.0, 96.7, 113.2 |

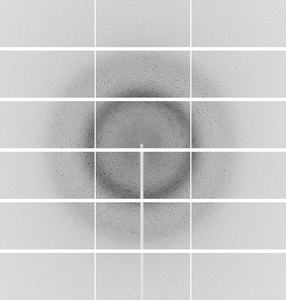

Dataset PSL-1607_433_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 140.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
