Diffraction project datasets BupsA_00122_a_A1_6mwi
- Resolution: 1.75 Å
- Space group: C 1 2 1
PDB website for 6MWI
PDB validation report for 6MWI
doi:10.18430/m36mwi
Project details

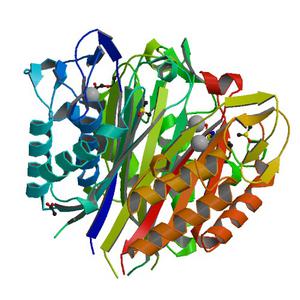

| Title | Crystal structure of 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase (IspF) Burkholderia pseudomallei in complex with ligand HGN-0456 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 117.00 x 67.35 x 60.79 |
| Unit cell angles [°] | 90.0, 96.5, 90.0 |

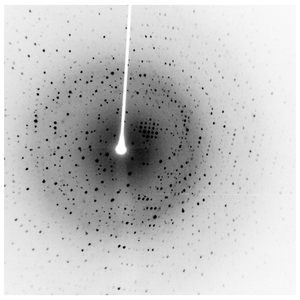

Dataset 300522g8_x####.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 30.0 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset 300522g8_x####.img details
| Number of frames | 180 (401 - 580) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -12.5 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
