Diffraction project datasets BupsA_00122_a_A1_6mwk
- Resolution: 1.8 Å
- Space group: C 1 2 1
PDB website for 6MWK
PDB validation report for 6MWK
doi:10.18430/m36mwk
Project details

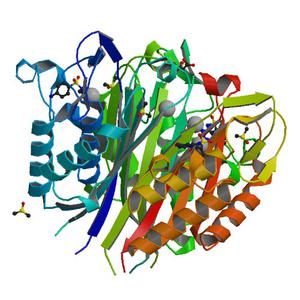

| Title | Crystal structure of 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase (IspF) Burkholderia pseudomallei in complex with ligand HGN-0883 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 117.33 x 68.04 x 60.67 |
| Unit cell angles [°] | 90.0, 96.5, 90.0 |
Dataset 300532c9_x####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 30.0 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

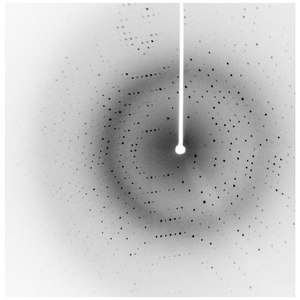

Dataset 300532c9_x####.img details
| Number of frames | 60 (201 - 260) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -85.0 |
| Kappa / Chi [°] | 30.0 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
