Diffraction project datasets CC1_10_GACGGTAATT_empty_9z08
- Resolution: 4.22 Å
- Space group: I 1 2 1
Uniprot website for P03856
PDB website for 9Z08
PDB validation report for 9Z08
doi:10.18430/M39Z08
Project details
| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing separate insert strand with sequence GACGGTAATT |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.24 / 0.25 |
| Unit cell edges [Å] | 75.05 x 133.51 x 135.65 |
| Unit cell angles [°] | 90.0, 96.1, 90.0 |

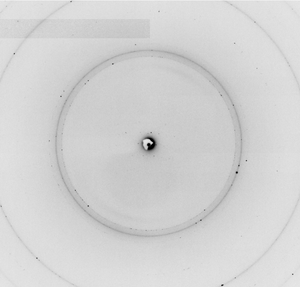

Dataset 1A-08_1_####.img details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 1.07216 |
| Experiment Date | 2022-04-14 |
| Equipment | 4.2.2 at ALS (Advanced Light Source) |
