Diffraction project datasets CC20730A_4n0p
- Method: SIRAS
- Resolution: 1.75 Å
- Space group: P 1 21 1
PDB website for 4N0P
PDB validation report for 4N0P
doi:10.18430/M34N0P
Project details

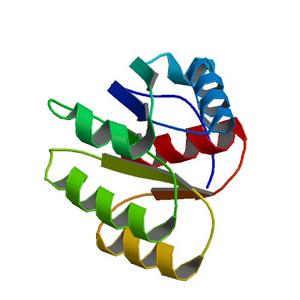

| Title | Crystal structure of a pilus assembly protein CpaE (CC_2943) from Caulobacter crescentus CB15 at 1.75 A resolution (PSI Community Target, Shapiro) |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 65.60 x 112.78 x 73.88 |
| Unit cell angles [°] | 90.0, 94.1, 90.0 |

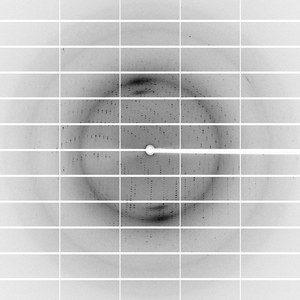

Dataset CpaE_2Hg70mins_1_#####.cbf details
| Number of frames | 700 (1 - 700) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 414.0 |
| Wavelength [Å] | 1.00800 |
| Experiment Date | 2012-01-26 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

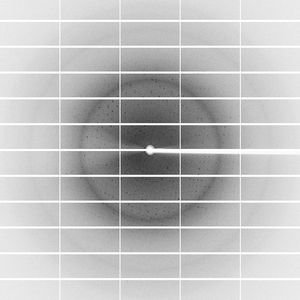

Dataset CpaE_2Hg70mins_2_#####.cbf details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 275.0 |
| Wavelength [Å] | 1.00800 |
| Experiment Date | 2012-01-26 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
