Diffraction project datasets CM8004D_2py6

  • Method: MAD
  • Resolution: 2.15 Å
  • Space group: I 2 2 2
Download all images (3.0 GB)

PDB website for 2PY6
PDB validation report for 2PY6

doi:10.18430/M32PY6

Project details

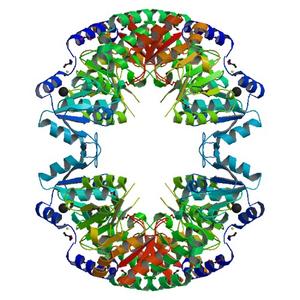

Title Crystal structure of Methyltransferase FkbM (YP_546752.1) from Methylobacillus flagellatus KT at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 73.66 x 119.17 x 122.58
Unit cell angles [°] 90.0, 90.0, 90.0

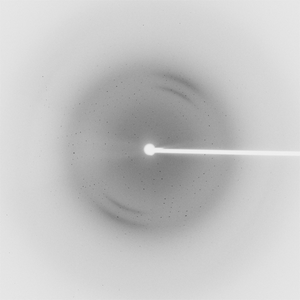

Dataset 49919_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 218.0
Wavelength [Å] 0.97926
Experiment Date 2007-04-29
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

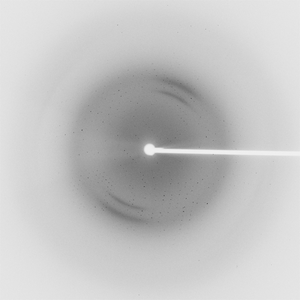

Dataset 49919_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 218.0
Wavelength [Å] 0.91837
Experiment Date 2007-04-29
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 49919_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 218.0
Wavelength [Å] 0.97891
Experiment Date 2007-04-29
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
