Diffraction project datasets CPX_06552_06553_5tcj
- Resolution: 2.4 Å
- Space group: P 21 21 21
Uniprot website for P9WFX9
PDB website for 5TCJ
PDB validation report for 5TCJ
doi:10.18430/m35tcj
Project details

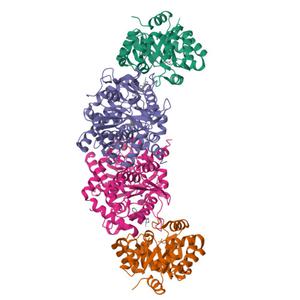

| Title | Crystal structure of tryptophan synthase from M. tuberculosis - aminoacrylate and BRD4592-bound form |
| Authors | Michalska, K., Maltseva, N., Jedrzejczak, R., Wellington, S., Nag, P.P., Fisher, S.L., Schreiber, S.L., Hung, D.T., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 135.09 x 159.88 x 165.33 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

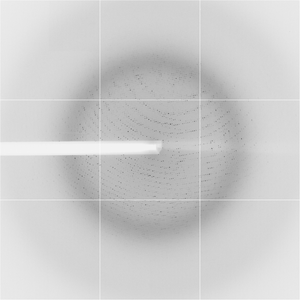

Dataset TrpAB_BRD_soak_Cs_Ser_A1_c.####.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 300.1 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 20.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2015-11-16 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

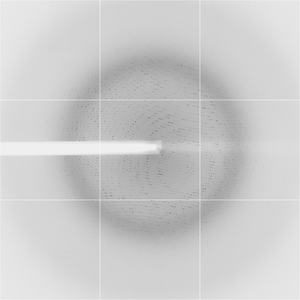

Dataset TrpAB_BRD_soak_Cs_Ser_A1_data.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2015-11-16 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
