Diffraction project datasets CoimA_00961_a_A2-UMP_39pe
- Resolution: 2.4 Å
- Space group: P 43 21 2
Uniprot website for J3KAP5
PDB website for 39PE
PDB validation report for 39PE
doi:10.18430/M339PE
Project details
| Title | Crystal structure of a septum formation protein Maf from Coccidioides immitis (UMP complex) |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.22 / 0.24 |
| Unit cell edges [Å] | 76.54 x 76.54 x 176.11 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

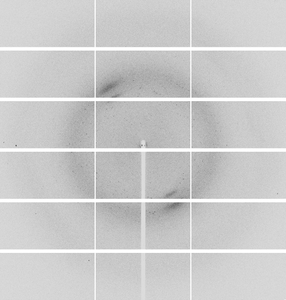

Dataset PSL-0108_1153_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 120.001 |
| Wavelength [Å] | 0.97860 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
