Diffraction project datasets EK2269L_3f7w

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 43 21 2
Download all images (3.3 GB)

PDB website for 3F7W
PDB validation report for 3F7W

doi:10.18430/M33F7W

Project details

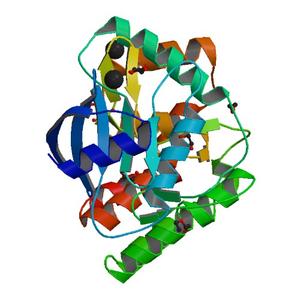

Title Crystal structure of putative fructosamine-3-kinase (YP_290396.1) from THERMOBIFIDA FUSCA YX-ER1 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 91.18 x 91.18 x 82.05
Unit cell angles [°] 90.0, 90.0, 90.0

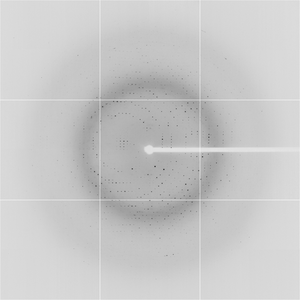

Dataset 81762_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 211.0
Wavelength [Å] 0.97922
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

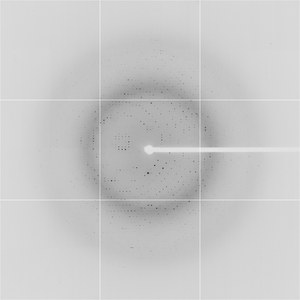

Dataset 81762_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 211.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

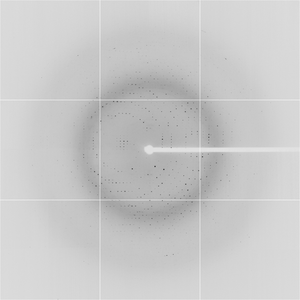

Dataset 81762_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 211.0
Wavelength [Å] 0.97862
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
