Diffraction project datasets EnhiA_01283_a_AE1_6w04
- Resolution: 1.95 Å
- Space group: P 63
PDB website for 6W04
PDB validation report for 6W04
doi:10.18430/m36w04
Project details

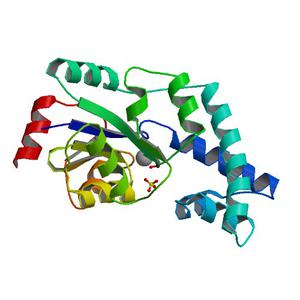

| Title | Crystal structure of HAD hydrolase, family IA, variant 3 from Entamoeba histolytica HM-1:IMSS |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 100.91 x 100.91 x 45.24 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

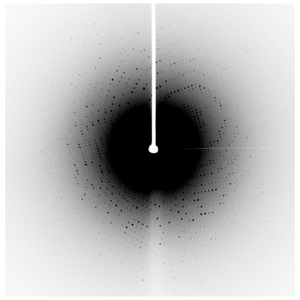

Dataset 314703e7_x####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

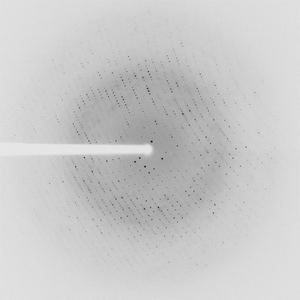

Dataset wrw2-2.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-02-06 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
