Diffraction project datasets FB10607B_2r6v

  • Method: MAD
  • Resolution: 1.25 Å
  • Space group: P 61 2 2
Download all images (16.3 GB)

PDB website for 2R6V
PDB validation report for 2R6V

doi:10.18430/M32R6V

Project details

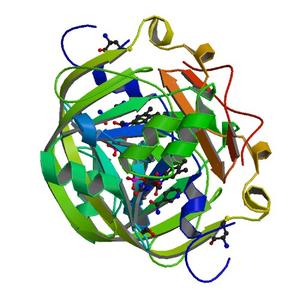

Title Crystal structure of FMN-binding protein (NP_142786.1) from Pyrococcus horikoshii at 1.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.15
Unit cell edges [Å] 46.20 x 46.20 x 267.59
Unit cell angles [°] 90.0, 90.0, 120.0

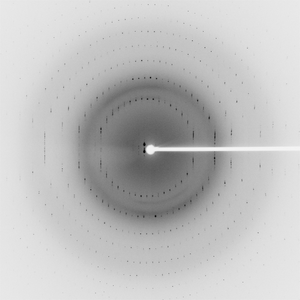

Dataset 56883_1_E1_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 187.0
Wavelength [Å] 0.97939
Experiment Date 2007-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

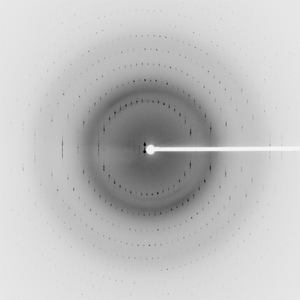

Dataset 56883_1_E2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 187.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

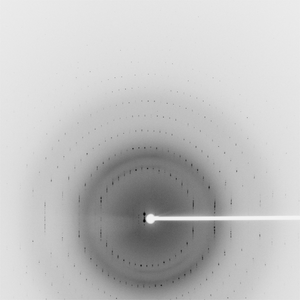

Dataset 56883_2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 187.0
Wavelength [Å] 0.97910
Experiment Date 2007-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
