Diffraction project datasets FB9776D_3fkh

  • Method: MAD
  • Resolution: 2.51 Å
  • Space group: P 21 21 21
Download all images (4.6 GB)

PDB website for 3FKH
PDB validation report for 3FKH

doi:10.18430/M33FKH

Project details

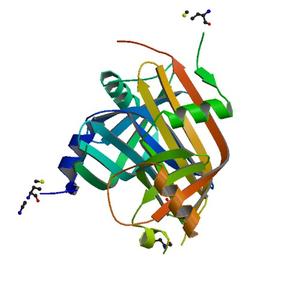

Title Crystal structure of Putative pyridoxamine 5'-phosphate oxidase (NP_601736.1) from CORYNEBACTERIUM GLUTAMICUM ATCC 13032 KITASATO at 2.51 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.29
Unit cell edges [Å] 74.63 x 88.31 x 138.17
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 96456_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] -1.0
Wavelength [Å] 0.97962
Experiment Date 2008-10-13
Equipment 23-ID-B at APS (Advanced Photon Source)

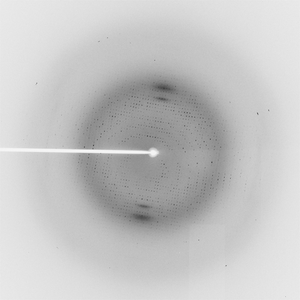

Dataset 96456_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] -1.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-13
Equipment 23-ID-B at APS (Advanced Photon Source)

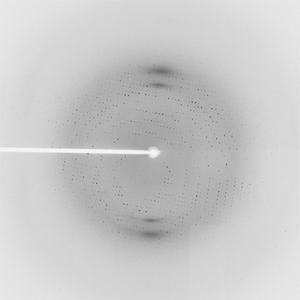

Dataset 96456_2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] -1.0
Wavelength [Å] 0.97948
Experiment Date 2008-10-13
Equipment 23-ID-B at APS (Advanced Photon Source)
