Diffraction project datasets FG7343A_2own

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 61 2 2
Download all images (1.1 GB)

PDB website for 2OWN
PDB validation report for 2OWN

doi:10.18430/M32OWN

Project details

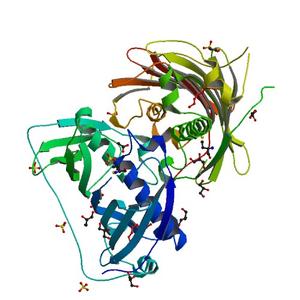

Title Crystal structure of oleoyl thioesterase (putative) (NP_784467.1) from Lactobacillus plantarum at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 106.52 x 106.52 x 234.38
Unit cell angles [°] 90.0, 90.0, 120.0

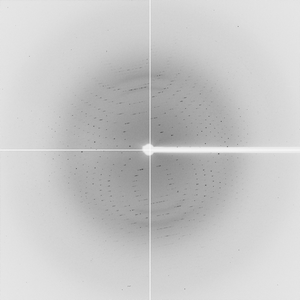

Dataset 34502_1_E1_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.97922
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

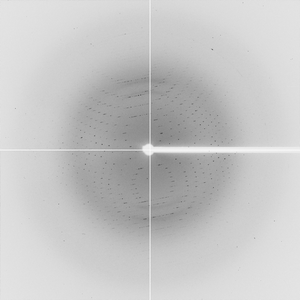

Dataset 34502_1_E2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

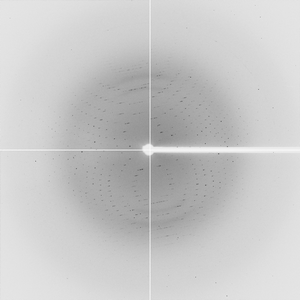

Dataset 34502_2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 170.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.97875
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
