Diffraction project datasets FG7396A_2hx5
- Method: SAD
- Resolution: 1.5 Å
- Space group: I 2 3
PDB website for 2HX5
PDB validation report for 2HX5
doi:10.18430/M32HX5
Project details
| Title | Crystal structure of a putative thioesterase (pmt_2055) from prochlorococcus marinus str. mit 9313 at 1.50 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 104.22 x 104.22 x 104.22 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

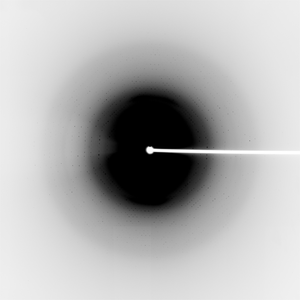

Dataset 26800_1_###.mccd details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 210.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 69.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2006-06-17 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

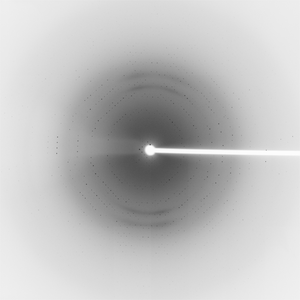

Dataset 26800_2_###.mccd details
| Number of frames | 45 (1 - 45) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 69.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2006-06-17 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
