Diffraction project datasets FG7406A_2ifx

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 43
Download all images (3.7 GB)

PDB website for 2IFX
PDB validation report for 2IFX

doi:10.18430/M32IFX

Project details

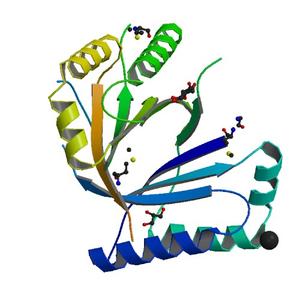

Title Crystal structure of a putative 4-methylmuconolactone methylisomerase (YP_295714.1) from Ralstonia eutropha JMP134 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 46.06 x 46.06 x 124.16
Unit cell angles [°] 90.0, 90.0, 90.0

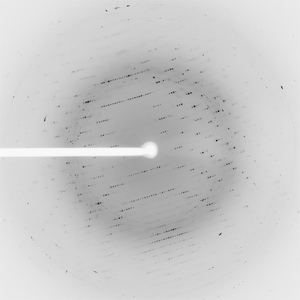

Dataset 30913_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Omega [°] 121.0
Phi [°] -1.0
Wavelength [Å] 0.97942
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)

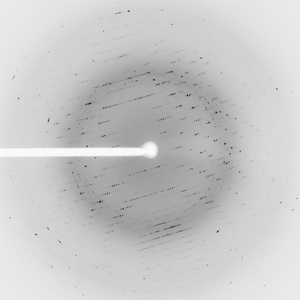

Dataset 30913_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Omega [°] 121.0
Phi [°] -1.0
Wavelength [Å] 0.94929
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)

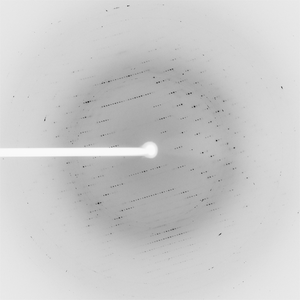

Dataset 30913_2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Omega [°] 121.0
Phi [°] -1.0
Wavelength [Å] 0.97928
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)
