Diffraction project datasets FH7484A_2i51

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 21 21 21
Download all images (6.5 GB)

PDB website for 2I51
PDB validation report for 2I51

doi:10.18430/M32I51

Project details

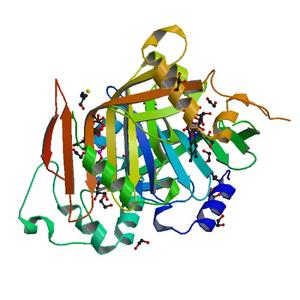

Title CRYSTAL STRUCTURE OF a pyridoxamine 5'-phosphate oxidase-related, FMN binding protein (NPUN_F5749) FROM NOSTOC PUNCTIFORME PCC 73102 AT 1.40 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 65.65 x 65.93 x 112.38
Unit cell angles [°] 90.0, 90.0, 90.0

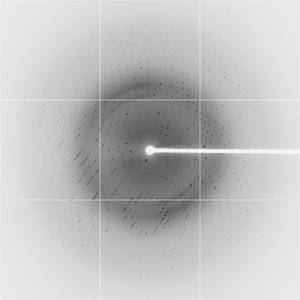

Dataset 28086_17_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 146.0
Wavelength [Å] 0.97926
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

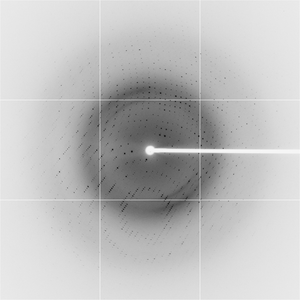

Dataset 28086_17_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 146.0
Wavelength [Å] 0.91162
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

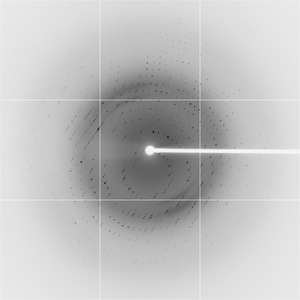

Dataset 28086_18_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 155.5
Wavelength [Å] 0.97898
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
