Diffraction project datasets FJ9257A_2p4o

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 42 21 2
Download all images (6.4 GB)

PDB website for 2P4O
PDB validation report for 2P4O

doi:10.18430/M32P4O

Project details

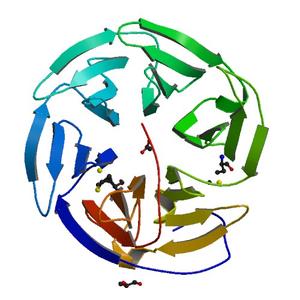

Title CRYSTAL STRUCTURE OF A PUTATIVE LACTONASE OF THE SMP-30/GLUCONOLACTONASE/LRE-LIKE REGION FAMILY (NPUN_F0524) FROM NOSTOC PUNCTIFORME PCC 73102 AT 1.90 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 91.44 x 91.44 x 75.19
Unit cell angles [°] 90.0, 90.0, 90.0

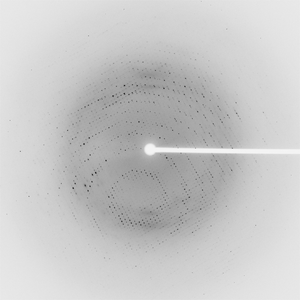

Dataset 42703_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 117.0
Wavelength [Å] 0.97925
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

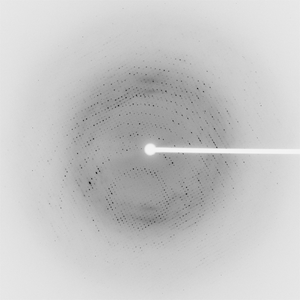

Dataset 42703_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 117.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

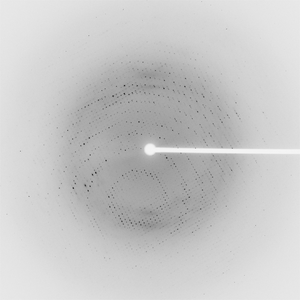

Dataset 42703_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 117.0
Wavelength [Å] 0.97895
Experiment Date 2007-02-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
