Diffraction project datasets FJ9329A_2p97

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: P 42 21 2
Download all images (3.2 GB)

PDB website for 2P97
PDB validation report for 2P97

doi:10.18430/M32P97

Project details

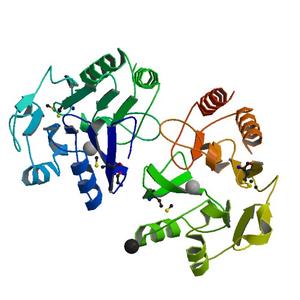

Title CRYSTAL STRUCTURE OF A PUTATIVE METAL-DEPENDENT HYDROLASE (AVA_3068) FROM ANABAENA VARIABILIS ATCC 29413 AT 1.65 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 103.32 x 103.32 x 96.69
Unit cell angles [°] 90.0, 90.0, 90.0

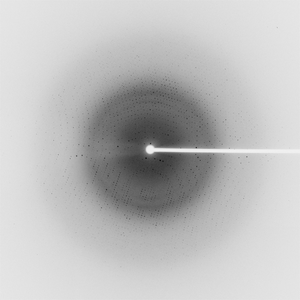

Dataset 43393_1_E1_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.97920
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

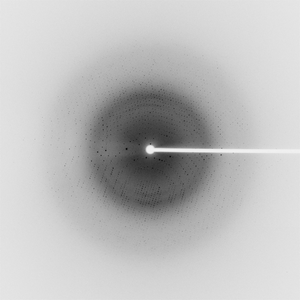

Dataset 43393_1_E2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

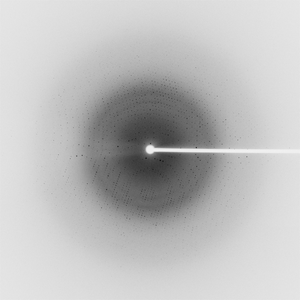

Dataset 43393_2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 340.0
Wavelength [Å] 0.97898
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
