Diffraction project datasets FJ9446A_2ou5

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: P 21 21 21
Download all images (4.2 GB)

PDB website for 2OU5
PDB validation report for 2OU5

doi:10.18430/M32OU5

Project details

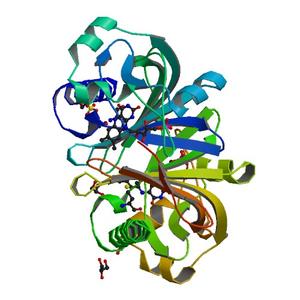

Title Crystal structure of a pyridoxamine 5'-phosphate oxidase-related fmn-binding protein (jann_0254) from jannaschia sp. ccs1 at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 45.88 x 68.51 x 111.92
Unit cell angles [°] 90.0, 90.0, 90.0

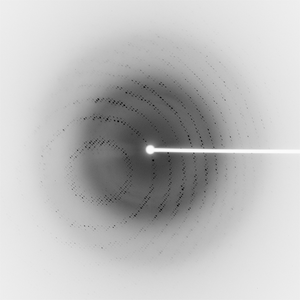

Dataset 39246_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 84.0
Wavelength [Å] 0.97922
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

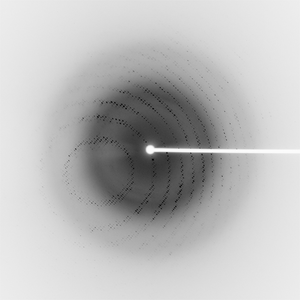

Dataset 39246_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 84.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

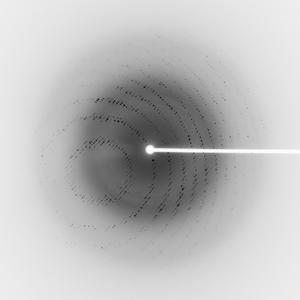

Dataset 39246_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 84.0
Wavelength [Å] 0.97898
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
