Diffraction project datasets FJ9548A_2pim
- Method: MAD
- Resolution: 2.2 Å
- Space group: P 6 2 2
PDB website for 2PIM
PDB validation report for 2PIM
doi:10.18430/M32PIM
Project details
| Title | CRYSTAL STRUCTURE OF A PUTATIVE THIOESTERASE, PHENYLACETIC ACID DEGRADATION-RELATED PROTEIN (REUT_B4779) FROM RALSTONIA EUTROPHA JMP134 AT 2.20 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 111.77 x 111.77 x 46.46 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

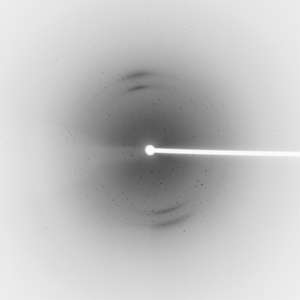

Dataset 46301_1_E1_###.mccd details
| Number of frames | 164 (1 - 164) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 284.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2007-02-04 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

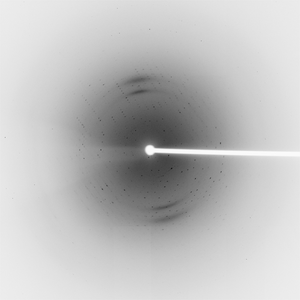

Dataset 46301_1_E2_###.mccd details
| Number of frames | 164 (1 - 164) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 284.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-02-04 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
