Diffraction project datasets FK4030A_2p7i

  • Method: MAD
  • Resolution: 1.74 Å
  • Space group: I 4 2 2
Download all images (7.9 GB)

PDB website for 2P7I
PDB validation report for 2P7I

doi:10.18430/M32P7I

Project details

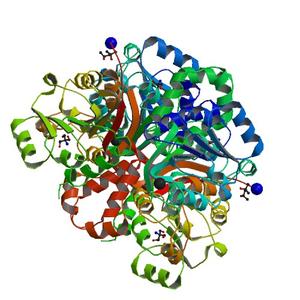

Title CRYSTAL STRUCTURE OF a SAM dependent methyl-transferase type 12 family protein (ECA1738) FROM PECTOBACTERIUM ATROSEPTICUM SCRI1043 AT 1.74 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 120.83 x 120.83 x 149.97
Unit cell angles [°] 90.0, 90.0, 90.0

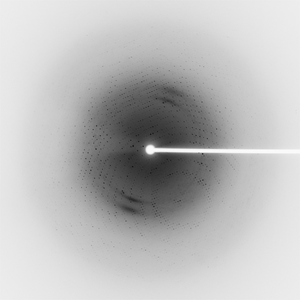

Dataset 44697_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 58.0
Wavelength [Å] 0.97925
Experiment Date 2007-03-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

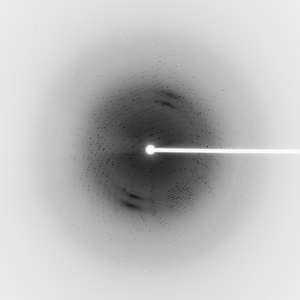

Dataset 44697_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 58.0
Wavelength [Å] 0.91837
Experiment Date 2007-03-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

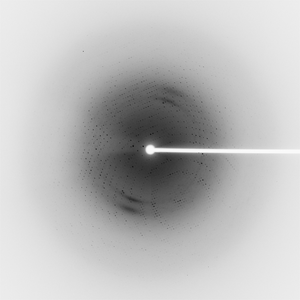

Dataset 44697_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 58.0
Wavelength [Å] 0.97898
Experiment Date 2007-03-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
