Diffraction project datasets FK9428A_2oik

  • Method: SAD
  • Resolution: 1.65 Å
  • Space group: P 1
Download all images (4.6 GB)

PDB website for 2OIK

doi:10.18430/M32OIK

Project details

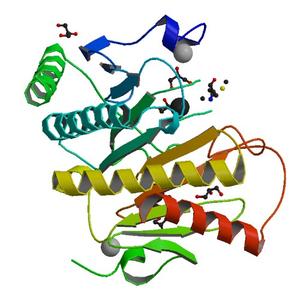

Title Crystal structure of a histidine triad (hit) protein (mfla_2506) from methylobacillus flagellatus kt at 1.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 45.24 x 47.98 x 69.77
Unit cell angles [°] 108.1, 98.2, 90.3

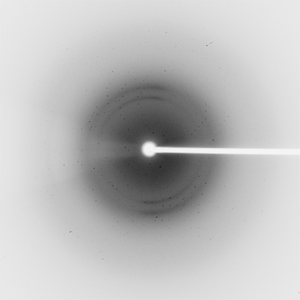

Dataset 38566_1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97913
Experiment Date 2006-12-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
