Diffraction project datasets FL10757A_2qpx

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: I 2 3
Download all images (8.6 GB)

PDB website for 2QPX
PDB validation report for 2QPX

doi:10.18430/M32QPX

Project details

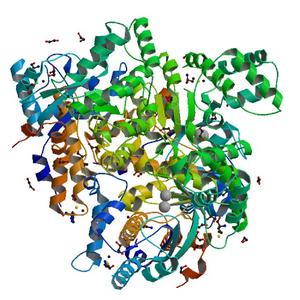

Title Crystal structure of putative metal-dependent hydrolase (YP_805737.1) from Lactobacillus casei ATCC 334 at 1.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.16
Unit cell edges [Å] 142.17 x 142.17 x 142.17
Unit cell angles [°] 90.0, 90.0, 90.0

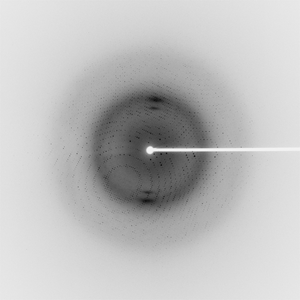

Dataset 55002_1_E1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 67.0
Wavelength [Å] 0.97917
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

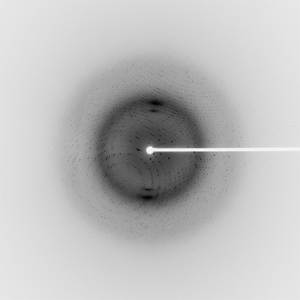

Dataset 55002_1_E2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 67.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

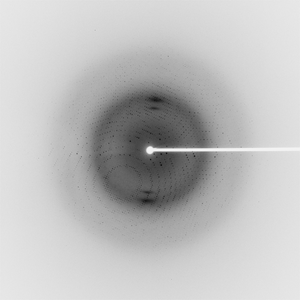

Dataset 55002_2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 67.0
Wavelength [Å] 0.97891
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
