Diffraction project datasets FL10904A_2qzc
Project details
| Title |
Crystal structure of a putative tena-like thiaminase (tena-1, sso2206) from sulfolobus solfataricus p2 at 1.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.18 |
| Unit cell edges [Å] |
88.86 x
88.86 x
135.76
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

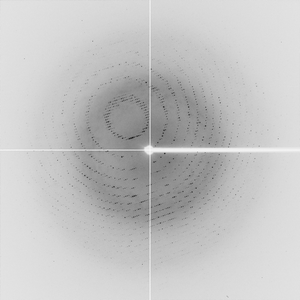

Dataset 56381_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
184.0 |
| Wavelength [Å] |
0.97931 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

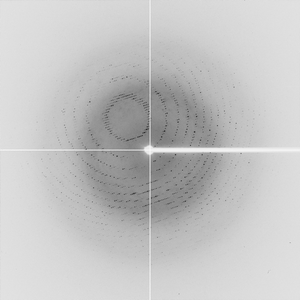

Dataset 56381_1_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
184.0 |
| Wavelength [Å] |
0.91838 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

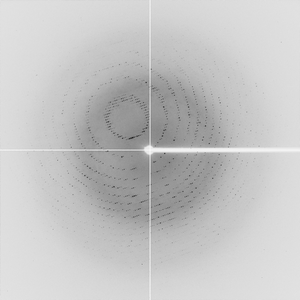

Dataset 56381_2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
184.0 |
| Wavelength [Å] |
0.97892 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

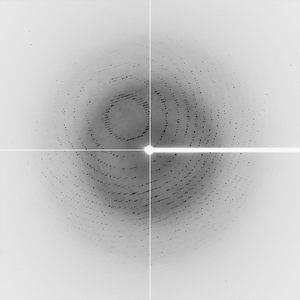

Dataset 56381_3_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
184.0 |
| Wavelength [Å] |
0.91838 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

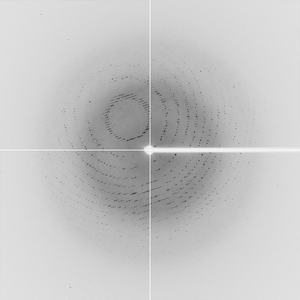

Dataset 56381_4_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
140.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
184.0 |
| Wavelength [Å] |
0.91838 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
