Diffraction project datasets FL10945A_2r3s

  • Method: MAD
  • Resolution: 2.15 Å
  • Space group: P 41 21 2
Download all images (5.3 GB)

PDB website for 2R3S
PDB validation report for 2R3S

doi:10.18430/M32R3S

Project details

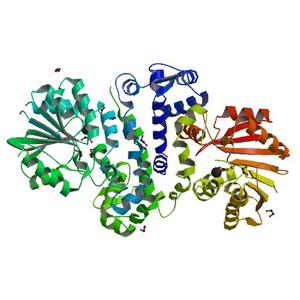

Title CRYSTAL STRUCTURE OF A PUTATIVE O-METHYLTRANSFERASE (NPUN_R0239) FROM NOSTOC PUNCTIFORME PCC 73102 AT 2.15 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 93.90 x 93.90 x 180.52
Unit cell angles [°] 90.0, 90.0, 90.0

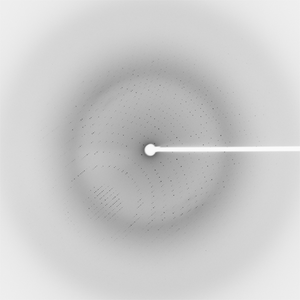

Dataset 57076_1_E1_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 300.0
Oscillation width [°] 0.70
Phi [°] 334.0
Wavelength [Å] 0.97925
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

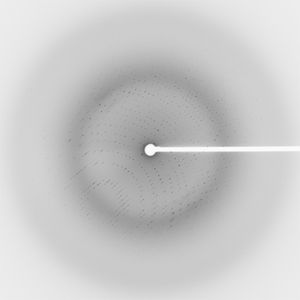

Dataset 57076_1_E2_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 300.0
Oscillation width [°] 0.70
Phi [°] 334.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

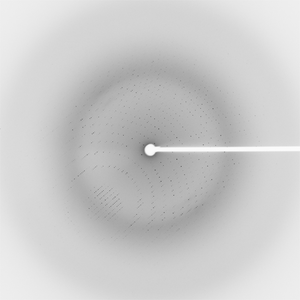

Dataset 57076_2_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 300.0
Oscillation width [°] 0.70
Phi [°] 334.0
Wavelength [Å] 0.97901
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
