Diffraction project datasets FL10960A_2qtq

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 21 21 21
Download all images (7.8 GB)

PDB website for 2QTQ
PDB validation report for 2QTQ

doi:10.18430/M32QTQ

Project details

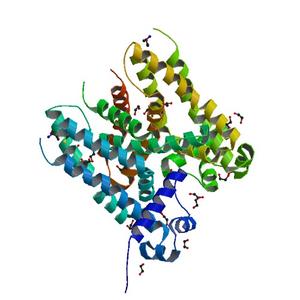

Title Crystal structure of a predicted dna-binding transcriptional regulator (saro_1072) from novosphingobium aromaticivorans dsm at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 66.46 x 98.76 x 164.04
Unit cell angles [°] 90.0, 90.0, 90.0

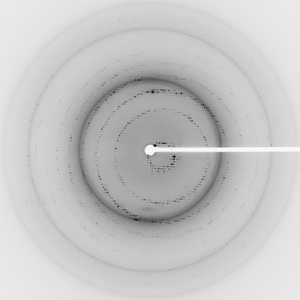

Dataset 55315_1_E1_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97926
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

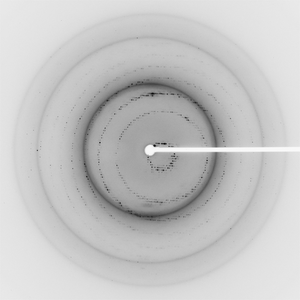

Dataset 55315_1_E2_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

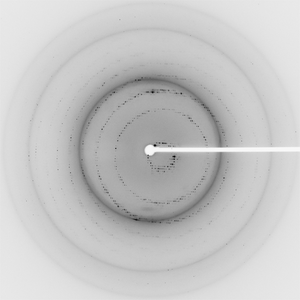

Dataset 55315_2_###.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97870
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
