Diffraction project datasets FM11607A_3c8u

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: H 3 2
Download all images (7.3 GB)

PDB website for 3C8U
PDB validation report for 3C8U

doi:10.18430/M33C8U

Project details

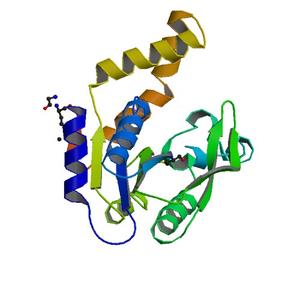

Title Crystal structure of putative fructose transport system kinase (YP_612366.1) from Silicibacter sp. TM1040 at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 102.28 x 102.28 x 116.63
Unit cell angles [°] 90.0, 90.0, 120.0

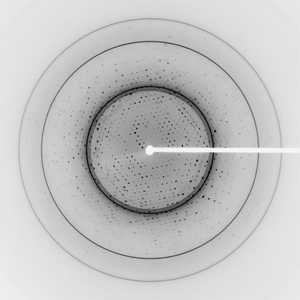

Dataset 73307_1_E1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 309.0
Wavelength [Å] 0.97978
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

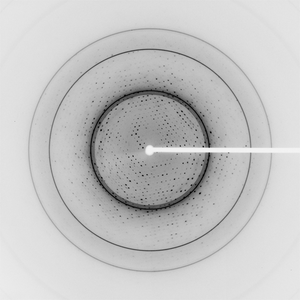

Dataset 73307_1_E2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 309.0
Wavelength [Å] 0.91837
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

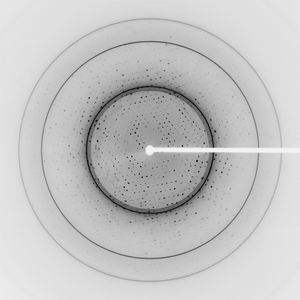

Dataset 73307_2_###.mccd details

Number of frames 141 (1 - 141)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 309.0
Wavelength [Å] 0.97964
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
