Diffraction project datasets FM11797A_3b8l
Project details
| Title |

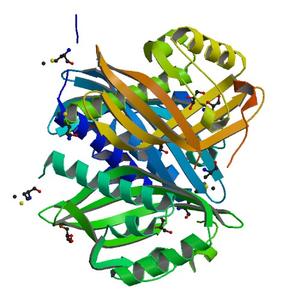

CRYSTAL STRUCTURE OF A PUTATIVE AROMATIC RING HYDROXYLASE (SARO_3538) FROM NOVOSPHINGOBIUM AROMATICIVORANS DSM AT 1.75 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.20 |
| Unit cell edges [Å] |
95.85 x
95.85 x
232.30
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

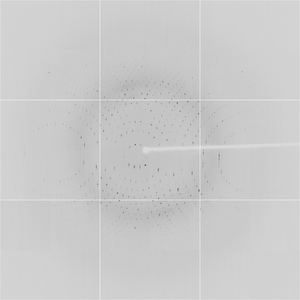

Dataset 60302_1_E1_###.img details
| Number of frames |
450 (1 - 450) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
122.0 |
| Wavelength [Å] |
0.97980 |
| Experiment Date |
2007-08-30 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

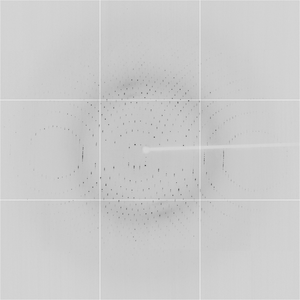

Dataset 60302_1_E2_###.img details
| Number of frames |
450 (1 - 450) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
122.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2007-08-30 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

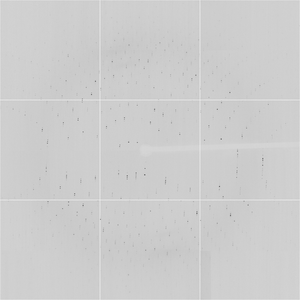

Dataset 60302_2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
122.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2007-08-30 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
