Diffraction project datasets FM11842B_2r4i

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: P 21 21 21
Download all images (3.8 GB)

PDB website for 2R4I
PDB validation report for 2R4I

doi:10.18430/M32R4I

Project details

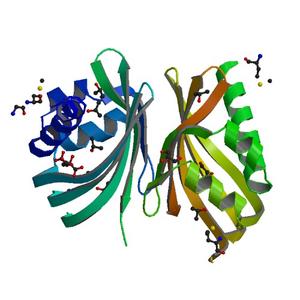

Title CRYSTAL STRUCTURE OF A NTF2-LIKE PROTEIN (CHU_1428) FROM CYTOPHAGA HUTCHINSONII ATCC 33406 AT 1.60 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 56.83 x 57.69 x 157.66
Unit cell angles [°] 90.0, 90.0, 90.0

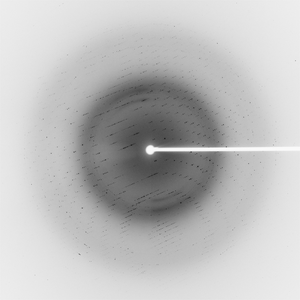

Dataset 57205_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 30.0
Wavelength [Å] 0.97926
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

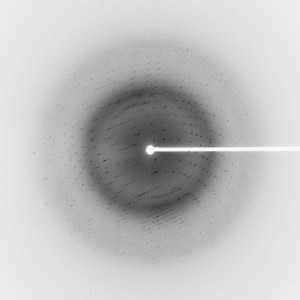

Dataset 57205_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 30.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

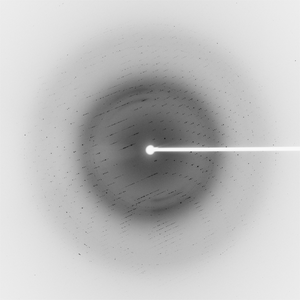

Dataset 57205_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 30.0
Wavelength [Å] 0.97904
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
